PFS Rotameter

PFS Rotameters have been designed to measure the flow rate with high accuracy.

Standard features include:

Polycarbonate body, which improves impact-resistance and provides and optically clear view
Polycarbonate body is also UV-protected, which makes it appropriate for use in direct sunlight
PVDF Float in red, highly visible

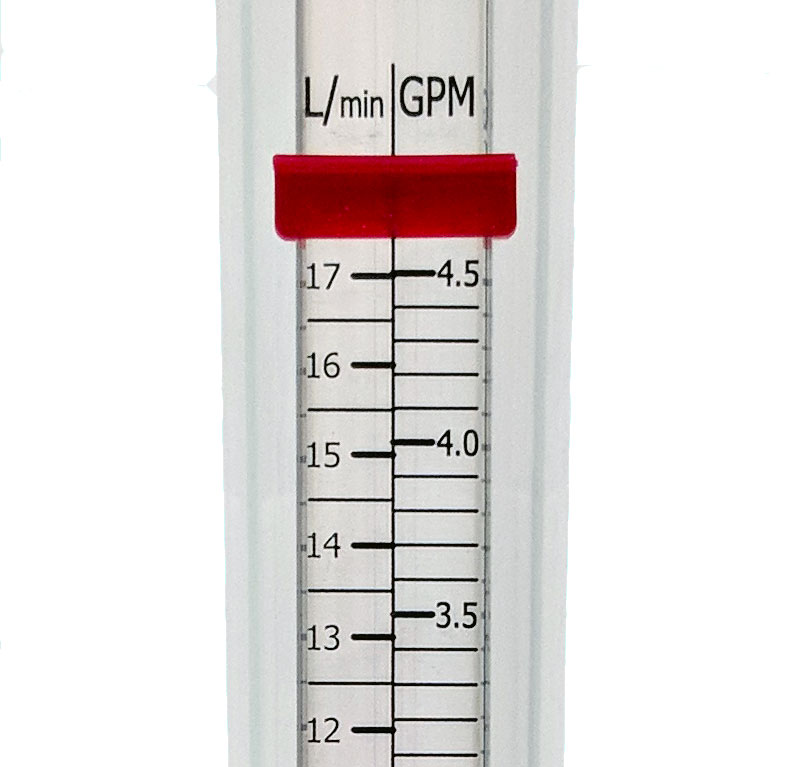

Dual graduation scale in L/min and GPM
Connections available in NPT, BSPT, Socket or DIN Socket
Connection sizes from 1/2" to 2"
Pressure rating to 150 psi
Certified to NSF/ANSI-61

Rotameter

Further Details:

Five flow ranges available, from 0.1 to 1.0 GPM up to 1.32 - 13.2 GPM
End connection materials available in PVC, CPVC, PVDF, and Polypropylene
Rotameters part numbers 200, 230, and 250 are available in connection sizes ranging from 1/2" to 1"
Rotameters part numbers 320 and 400 are available in connection sizes ranging from 1" to 2"
Dual graduation scale in L/min and GPM
Connections available in NPT, BSPT, Socket or DIN Socket
NEW! Magnetic Flow Switch available for use as alarm or control for desired flow range.
Magnetic Flow Switch available on all Rotameter sizes. Available as add-on or retrofit upgrade.
